MAIN PARAMETERT
| Finish | black, zinc plated | Material | stianless steel, carbon steel |

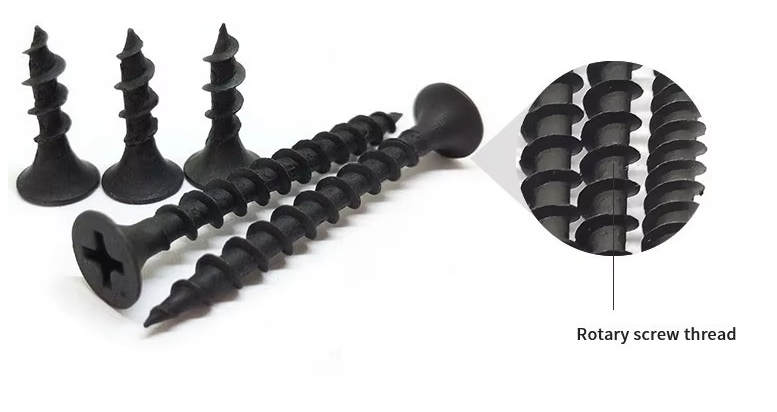

| Measurement System | Inch, Metric | Thread | fine thread , coarse thread |

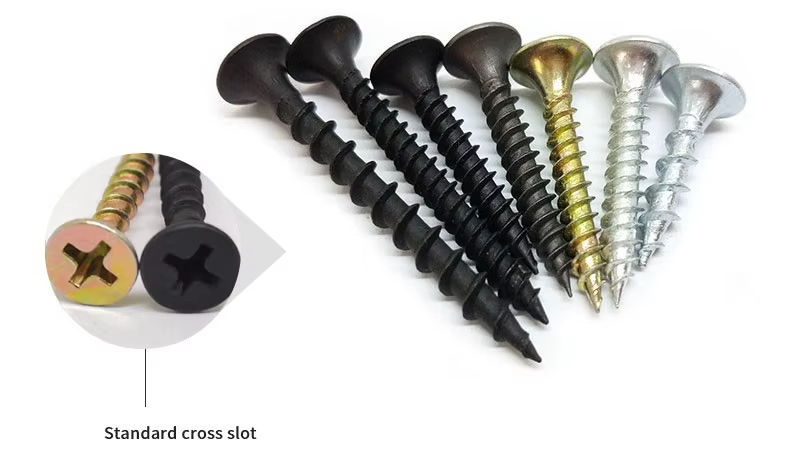

| Head Style | flat, bugle | Product Name | Drywall Screw |
| Brand Name | Karizma | Place of Origin | Jiangsu, China |
| Size | all size, M3.5X13-M4.8x200 | Surface | black, grey phosphate or zinc plated |

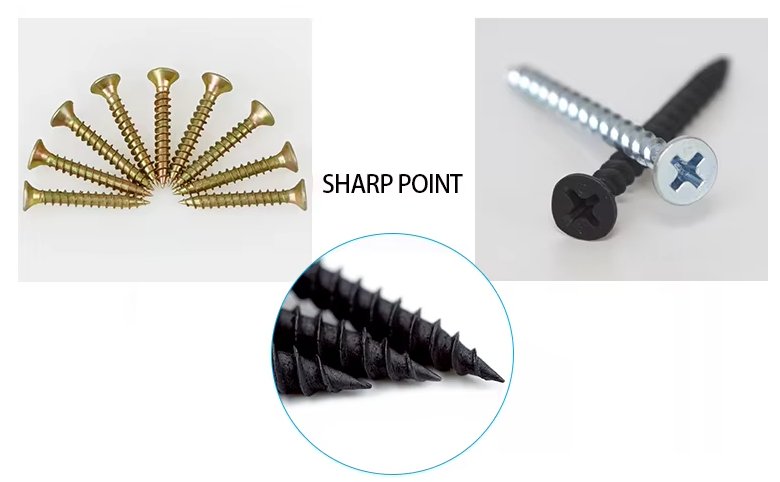

| Point | drill point or sharp point | Usage | gypsum board, steel panel, wood panel etc, |
| Length | 13mm-200mm | Sample | provided
|
| Hardness of core | 300-460HV | Hardness of Surface | 450-700HV |

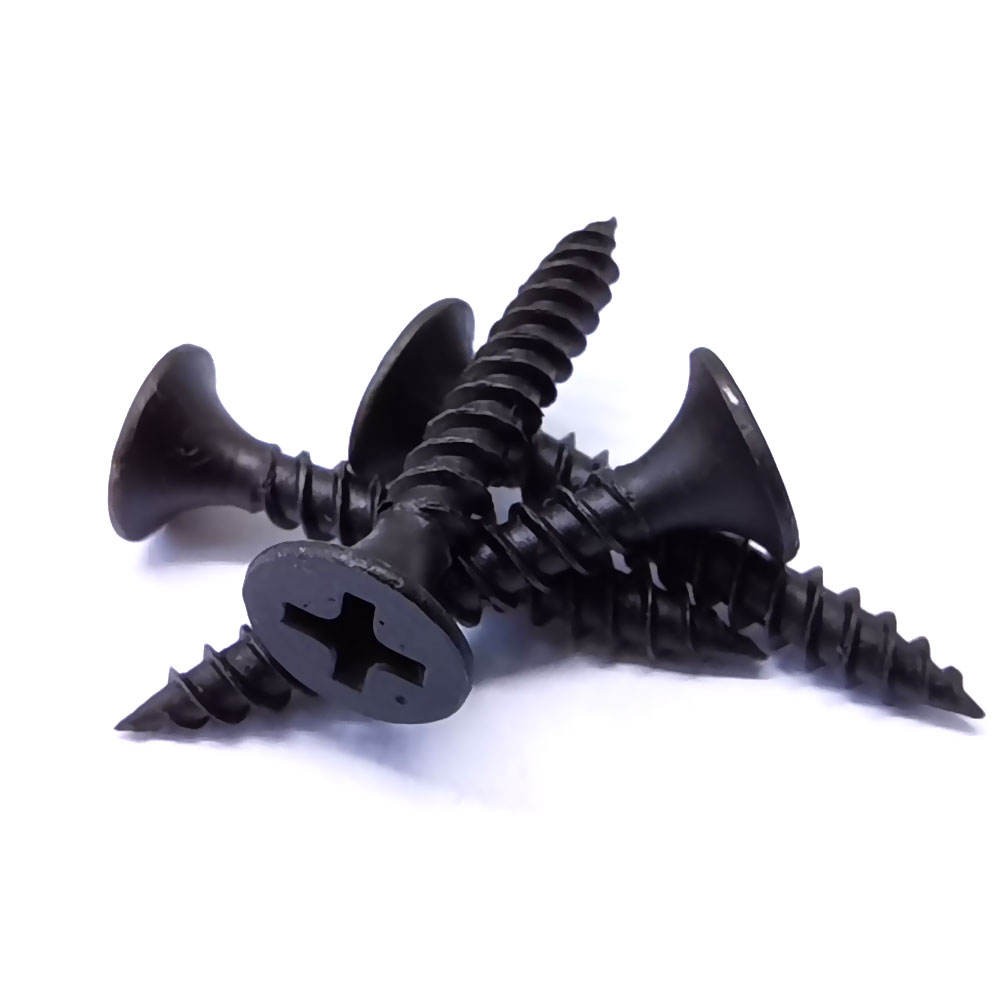

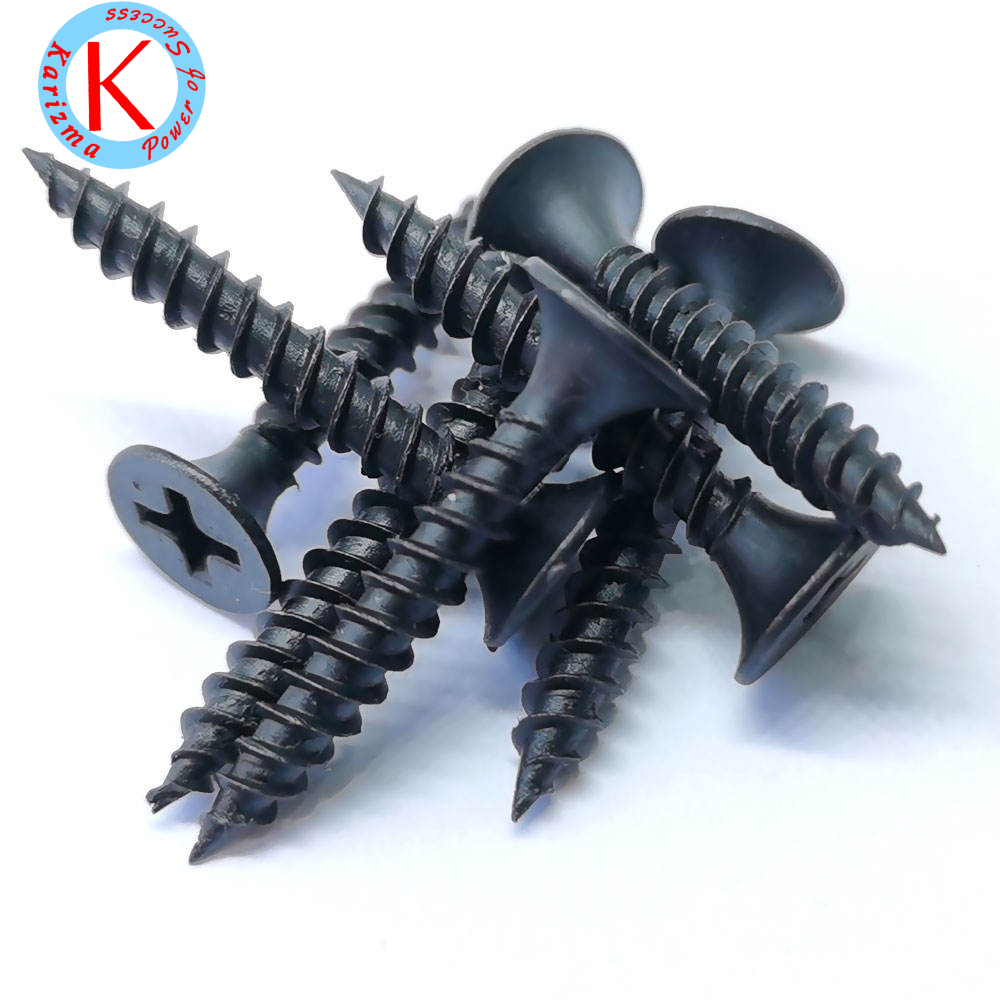

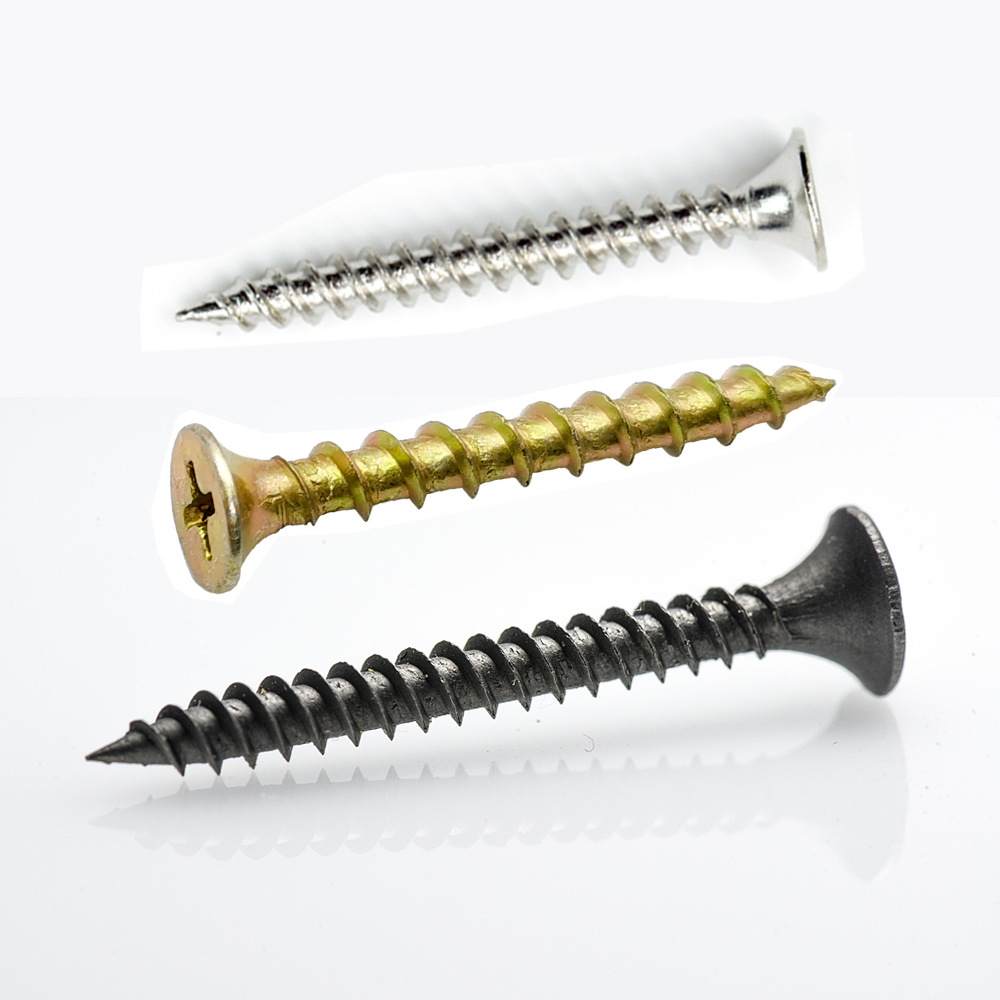

PRODUCT DETAIL
All our products are subjected to strict test and inspection in each process by the workers and QC personnel periodically, starting from the raw materials delivered to the factory. The products shall be tested and inspected to be qualified before they are passed down to the next process.

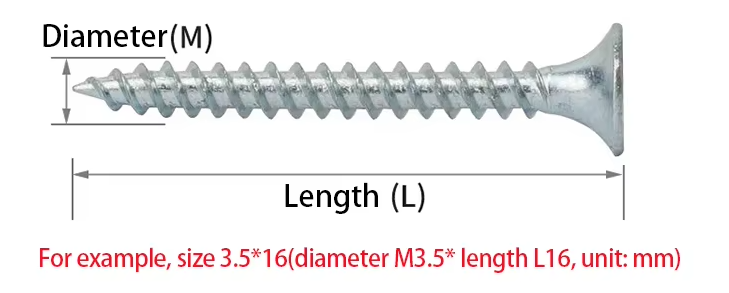

SIZES OF DRYWALL SCREW
| Size(mm) | Size(inch) | Size(mm) | Size(inch) | Size(mm) | Size(inch) | Size(mm) | Size(inch) |
| 3.5*13 | #6*1/2 | 3.5*63 | #6*2-1/2 | 4.2*13 | #8*1/2 | 4.2*102 | #8*4 |
| 3.5*16 | #6*5/8 | 3.5*75 | #6*3 | 4.2*16 | #8*5/8 | 4.8*51 | #10*2 |
| 3.5*19 | #6*3/4 | 3.9*20 | #7*1-3/4 | 4.2*19 | #8*3/4 | 4.8*65 | #10*2-1/2 |
| 3.5*25 | #6*1 | 3.9*25 | #7*1 | 4.2*25 | #8*1 | 4.8*70 | #10*2-3/4 |
| 3.5*30 | #6*1-1/8 | 3.9*30 | #7*1-1/8 | 4.2*32 | #8*1-1/4 | 4.8*75 | #10*3 |
| 3.5*32 | #6*1-1/4 | 3.9*32 | #7*1-1/4 | 4.2*34 | #8*1-1/2 | 4.8*90 | #10*3-1/2 |
| 3.5*35 | #6*1-3/8 | 3.9*35 | #7*1-1/2 | 4.2*38 | #8*1-5/8 | 4.8*100 | #10*4 |
| 3.5*38 | #6*1-1/2 | 3.9*38 | #7*1-5/8 | 4.2*40 | #8*1-3/4 | 4.8*115 | #10*4-1/2 |
| 3.5*41 | #6*1-5/8 | 3.9*40 | #7*1-3/4 | 4.2*51 | #8*2 | 4.8*120 | #10*4-3/4 |
| 3.5*45 | #6*1-3/4 | 3.9*45 | #7*1-7/8 | 4.2*65 | #8*2-1/2 | 4.8*125 | #10*5 |
| 3.5*50 | #6*2 | 3.9*51 | #7*2 | 4.2*70 | #8*1-3/4 | 4.8*127 | #10*5-1/8 |
| 3.5*55 | #6*2-1/8 | 3.9*55 | #7*2-1/8 | 4.2*75 | #8*3 | 4.8*150 | #10*6 |
| 3.5*57 | #6*2-1/4 | 3.9*65 | #7*1-1/2 | 4.2*90 | #8*3-1/2 | 4.8*152 | #10*6-1/8 |

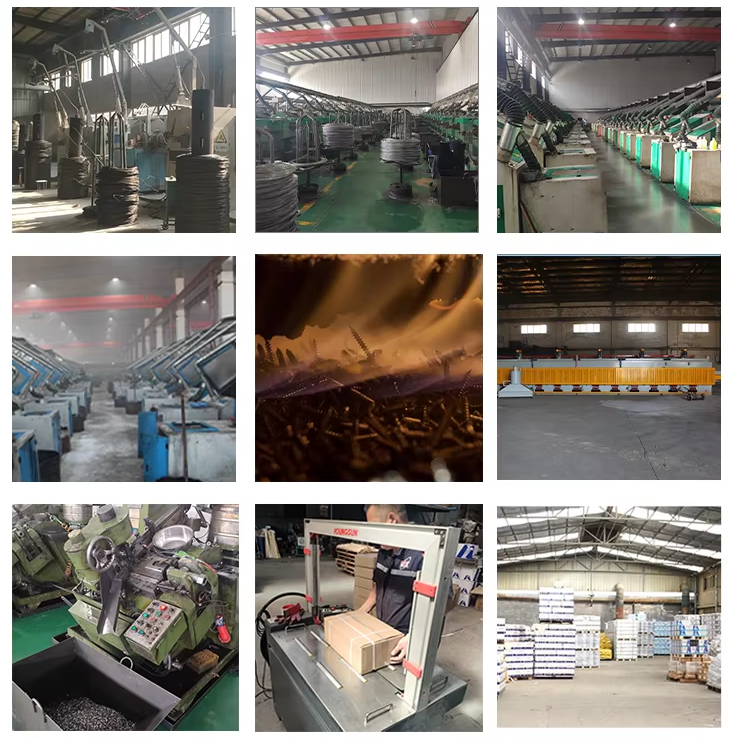

PRODUCTION LINE

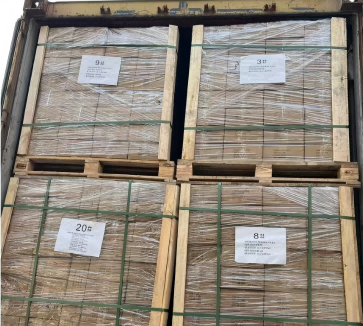

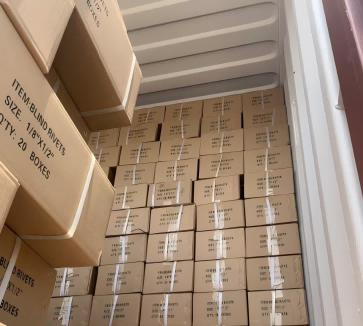

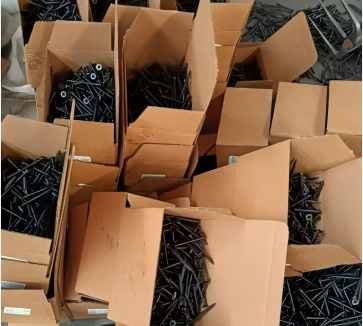

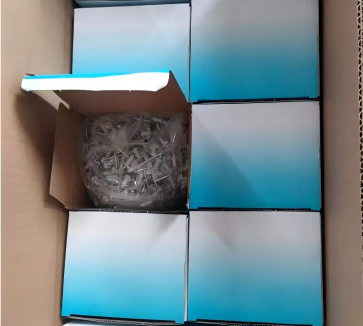

PACKING AND DELIVERY
We offer customized colored small box and carton design and printing services for customers. We arrange shipment according to the qty and demand of customers including airways, by sea and other ways when needed.
